Description
100 Inch Fresnel ALR Floor Rising Screen
Designed for Standard Throw Projectors | CMF100HFS
The CynthiaScreen 100 Inch Fresnel ALR Floor Rising Screen (CMF100HFS) is specially designed for standard throw and long throw projectors, offering exceptional image quality in bright room environments.
Featuring an advanced Fresnel ambient light rejecting optical surface, this screen improves contrast, enhances black levels, and preserves color accuracy even under ceiling lights or natural daylight.
It is the ideal choice for modern living rooms, home theaters, apartments, and professional presentation spaces.
Precision Fresnel ALR Optical Technology
This 100 inch Fresnel ALR floor rising screen uses a precision micro-structured Fresnel surface that reflects projector light directly toward the viewer while rejecting overhead and side ambient light.
Key advantages
- strong ambient light rejection
- deeper blacks
- vivid colors
- improved daytime viewing
- sharper image details
- supports 4K and 8K projection
Perfect for bright room home cinema setups.
Smooth Motorized Floor Rising Design
The screen rises vertically from a compact aluminum floor case through a silent motorized system.
Features
- quiet motor operation
- smooth lifting
- wireless remote control
- USB trigger synchronization
- clean hidden storage design
When not in use, the screen retracts completely into the housing, keeping your space elegant and uncluttered.
Ideal Viewing Size for Living Rooms
The 100 inch floor rising projector screen is ideal for viewing distances of 2.8 to 4 meters, making it perfect for:
- apartment living room
- home theater
- bedroom cinema
- conference room
- smart home AV system
Premium Aluminum Housing
Constructed with durable aviation-grade aluminum alloy casing.
Benefits
- anti-corrosion finish
- stable support structure
- elegant appearance
- long service life
- modern home décor compatibility

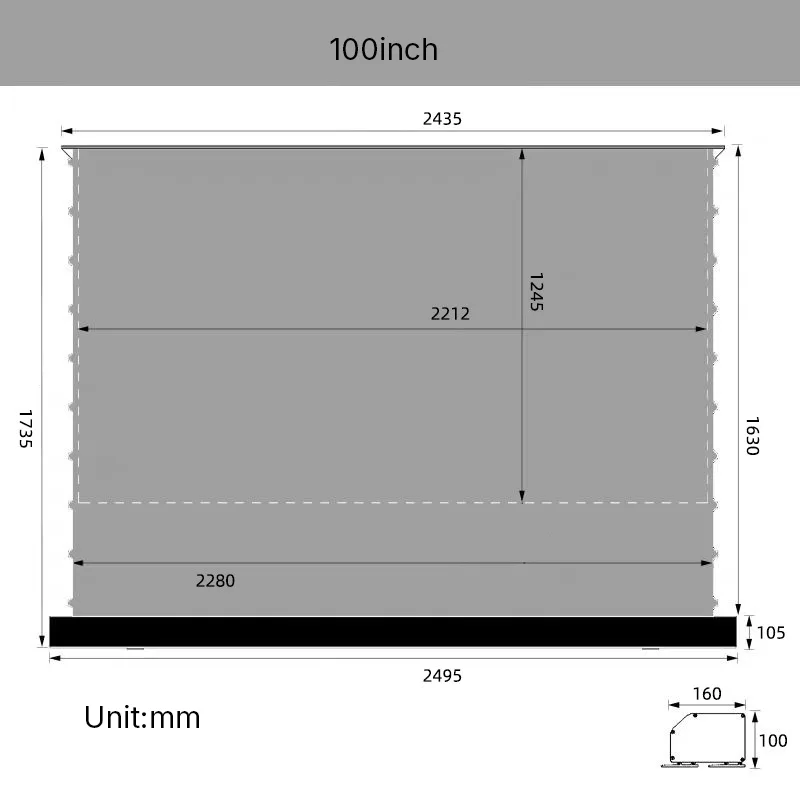

Technical Specifications
| Item | Specification |
|---|---|
| Model | CMF100HFS |
| Size | 100 Inch |
| Aspect Ratio | 16:9 |
| Surface | Fresnel ALR |
| Compatible Projector | Standard Throw |
| Resolution | 4K / 8K Ready |
| Control | Remote + USB Trigger |
| Installation | Floor Rising |
| Housing | Aluminum Alloy |
29 seconds to open your shocking home theater
this floor rising projector screen can be put on the ground,on the table or in your TV cabinet…Providing you with a wonderful movie viewing experience
Black grid ambient rejecting fabric
Fresnel ALR Screen
- Structure: Features semi-concentric circular grooves (similar to a flattened concave mirror). These grooves not only reflect light from the projector lens aligned with the center of the circles.while absorbing stray light from above and the sides.
- Principle: Uses Fresnel lens-like focusing properties to concentrate projected light into a narrow viewing zone,enhancing brightness and ambient light rejection.
- Advantages:
- Superior Ambient Light Rejection: ~96% rejection rate; significantly better performance in bright environments.
- High Brightness Gain: Up to 1.6x brightness boost due to light-focusing design, delivering sharper images.Viewing angle within 120°.
- Enhanced Image Quality: Supports true 8K resolution; richer colors and depth closer to OLED TV quality.
- Premium standard throw projector screen.Fresnel screens work well with both ultra short throw projectors and standard throw projectors.This model is for standard throw projector.
- Best used for High-ambient-light rooms, corporate settings,home theater,living rooms,offices etc.
Free installation
Electric Floor rising screen is controlled by remote control
instead of pulling up and down,it can be opened easily,also it comes with a smart trigger which is a USB trigger to connect the screen with a projector,when projector turn on,meanwhile the screen will be opened
Electric floor rising projector screen adopts aviation aluminum alloy housing
white or black color can be optional,Screen Size can be custom made
Back of the electric floor rising projector screen
is High strength support rod,solid and durable,smoothly up and down.
CTA
Bring Cinema Quality to Your Living Room
Upgrade your space with the 100 inch Fresnel ALR floor rising screen.
Contact CynthiaScreen today for OEM pricing, wholesale orders, and custom solutions.
